Darkness detection using KY-33 line sensor
The EzloPi smart devices provide automation through simple, customizable use with our open-source EzloPi platform, making daily life easier and improving human-machine interactions.
Before moving into this example, it is very important to know about the device registration, provisioning and converting the ESP32 device into an EzloPi device along with knowledge of Web Flasher, MiOS Mobile Application for Android/iOS and the MiOS Web Application.
1. About this example
The following project involves interfacing the KY-33 line sensor with the EzloPi device to create a system for darkness detection. The KY-33 sensor is typically used for line-following robots, and can detect variations in light intensity. By connecting this sensor to the EzloPi device, the system will monitor ambient light levels. When the sensor detects a drop in light intensity indicating darkness, the EzloPi device will trigger predefined actions, such as turning on lights or sending notifications to users via email. This setup leverages the KY-33's sensitivity and the EzloPi device’s processing capabilities to create an efficient and responsive darkness detection solution.
2. Project Demonstration Video
Welcome to the project demonstration video section. The following video showcases the key aspects of Darkness detection using KY-33 line sensor, providing a visual walkthrough of its implementation.
3. Circuit Diagram & Interface

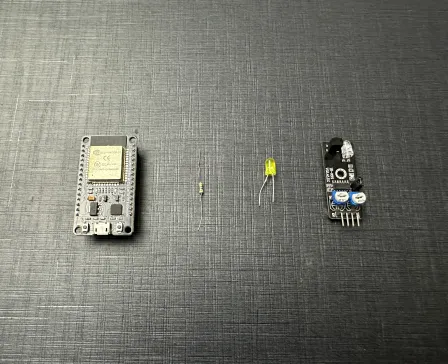

The following components are required for interfacing with the EzloPi device:
- ESP32 as an EzloPi smart device.
- KY-033 Line tracking sensor module.
- LED with 100 Ohms resistor.

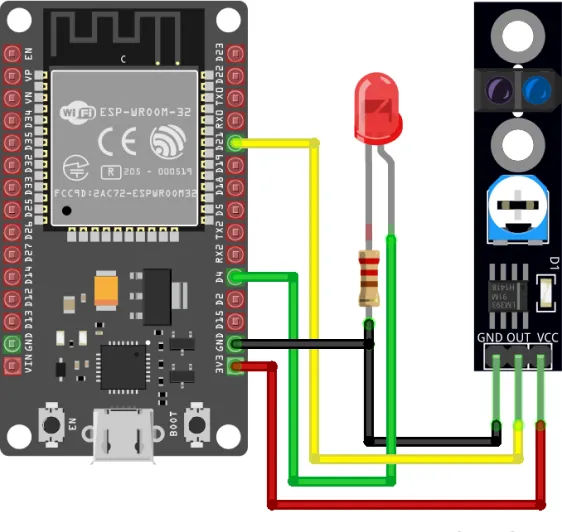

The wiring diagram of ESP32 30 pin is represented as follows:

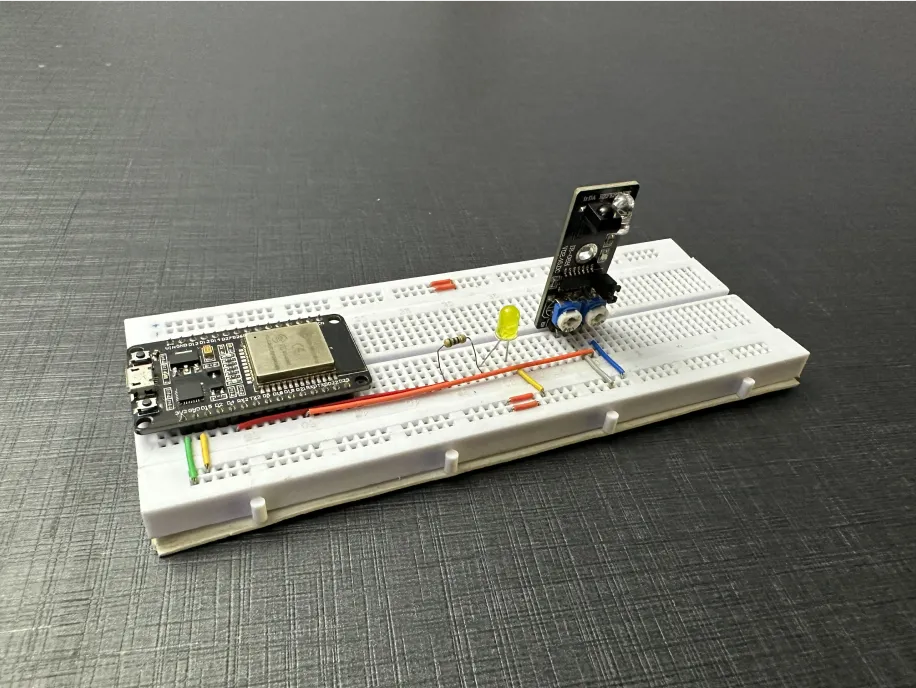

The following connections are made in order to complete the circuit setup.
From ESP32 to KY-033:
ESP32 | KY-033 |
3V3 | VCC |
GND | GND |
D21 | OUT |
From ESP32 to LED & Resistor:
ESP32 | LED | Resistor |
D4 | Anode | - |
GND | - | 1st Terminal |
- | Cathods | 2nd Terminal |
4. Interfacing the Line tracking sensor using the EzloPi Web Flasher

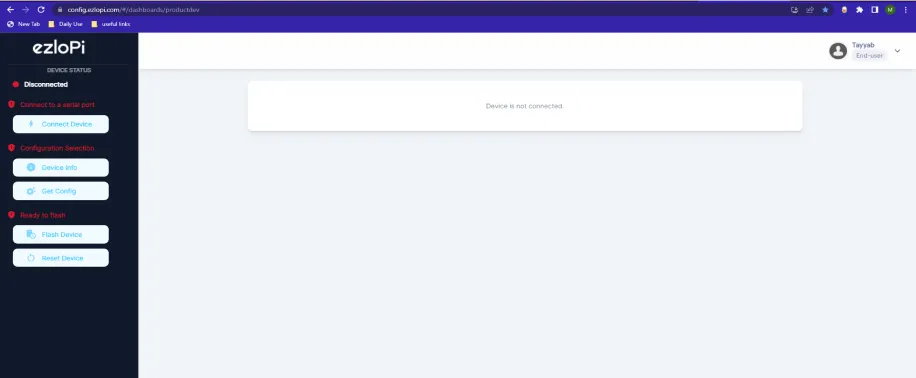

1. Set up your device/hardware by visiting config.ezlopi.com

- Log in using the credentials which you just set earlier while signing up.

- Now, click on the Connect Device button and a pop-up window will appear.

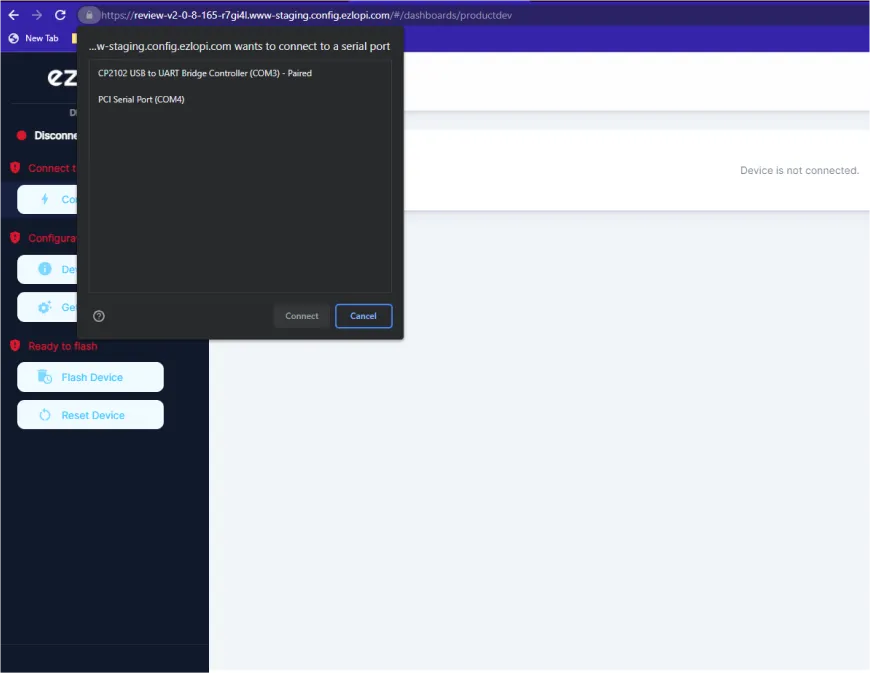

- Now, select COM Port to which your ESP32 device is connected. In our case, the COM3 port is used.
Click Connect

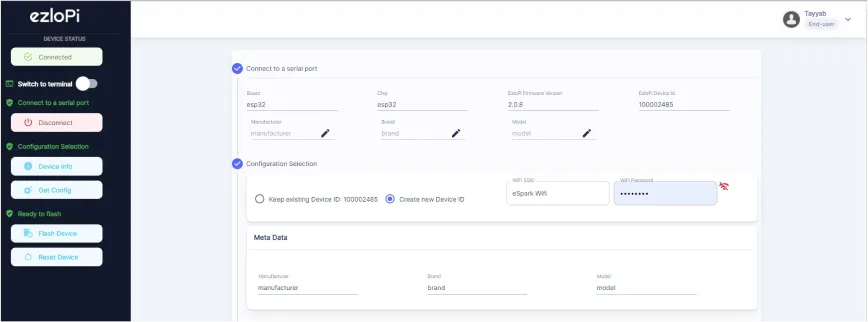

- If you are new to this and it's your first time configuring, select Create new Device ID. Enter Wifi SSID and Wifi Password.
- In the Device Configuration, tab click on Digital Input.

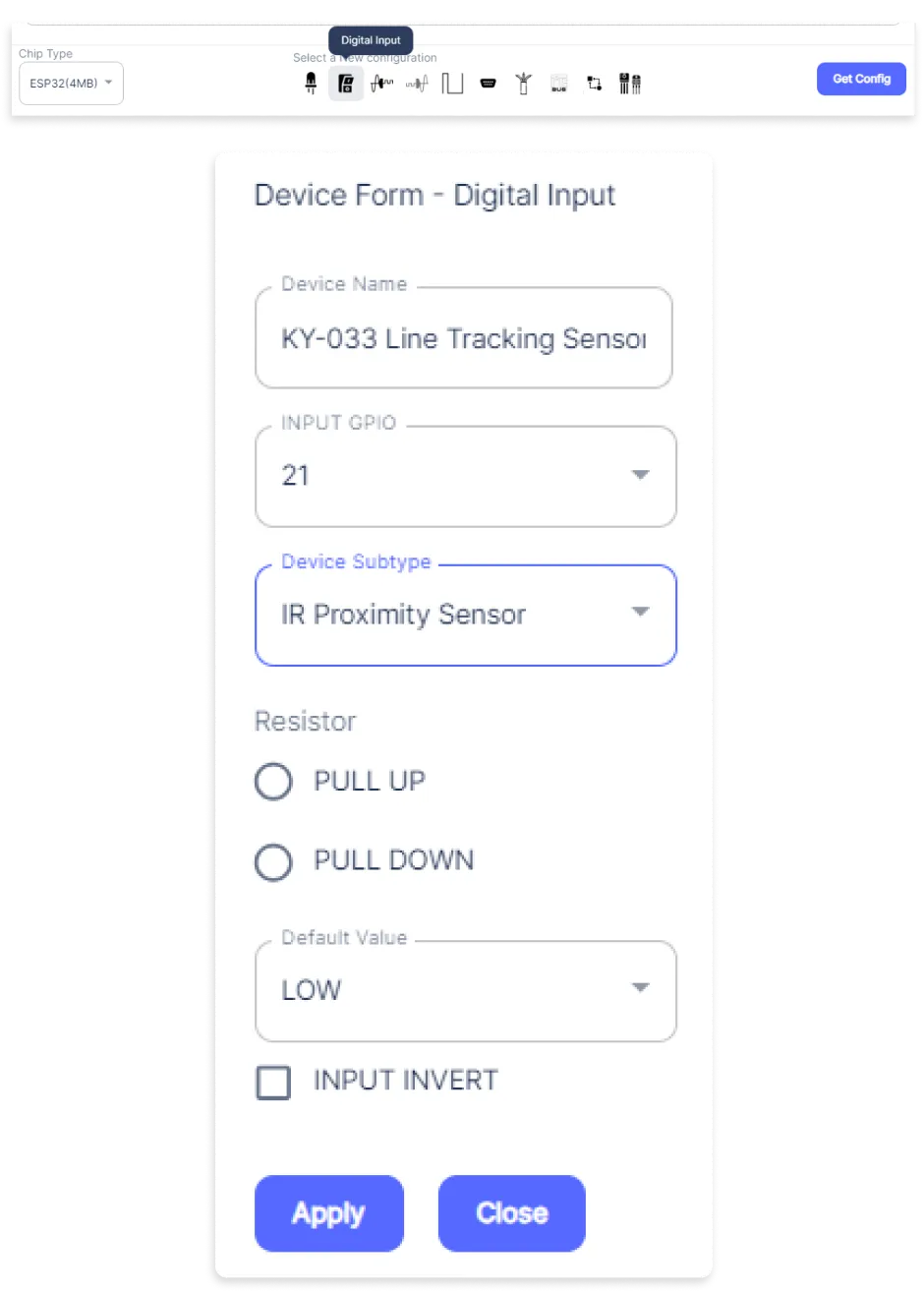

- A Digital Input window will be opened for inputting the following parameters:
- Set a device name of your choosing. In our case we set it to KY-033 Line Tracking Sensor.
- Set the Input GPIO to 21.
- Set Device Subtype to IR Proximity Sensor.
- Then Click Apply Button.
- In the Device Configuration, tab click on Digital Output.

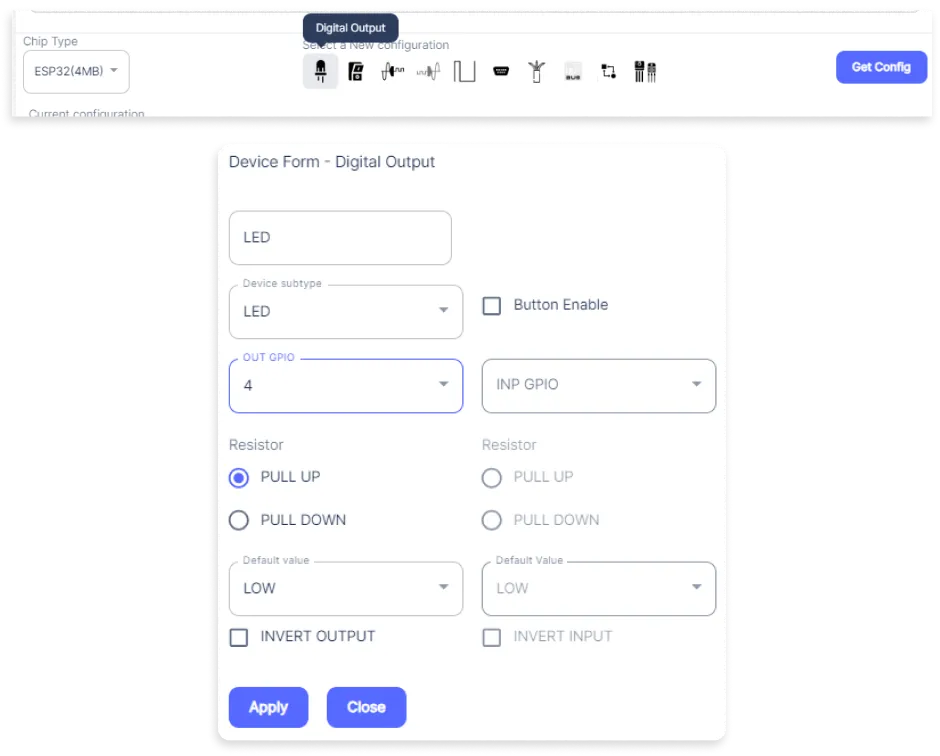

- A Digital Output window will be opened for inputting the following parameters:
- Set a Device name of your choosing. In our case we set it to LED.
- Set Device Subtype to LED.
- Set the OUT GPIO to 4.
- Set Resistor to PULL UP.
- Then Click Apply Button.
- After clicking the apply button you can see a table of your setting in the device configuration tab.
- Press the Flash Device button.

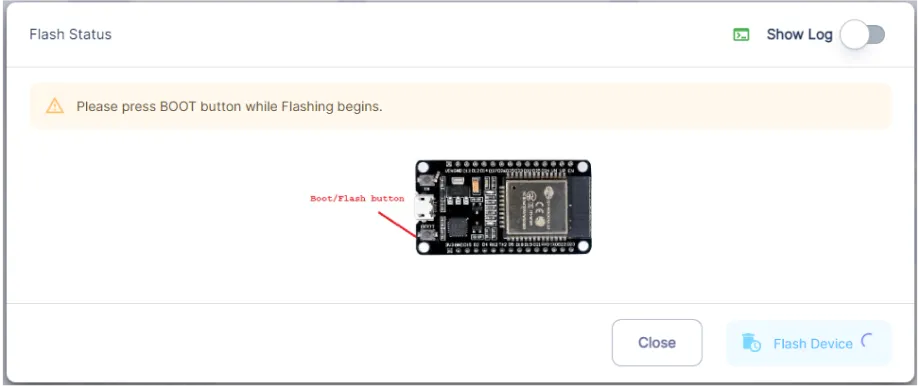

- A window will appear on the bottom right side of the screen displaying “Please press BOOT button while flashing begins.”

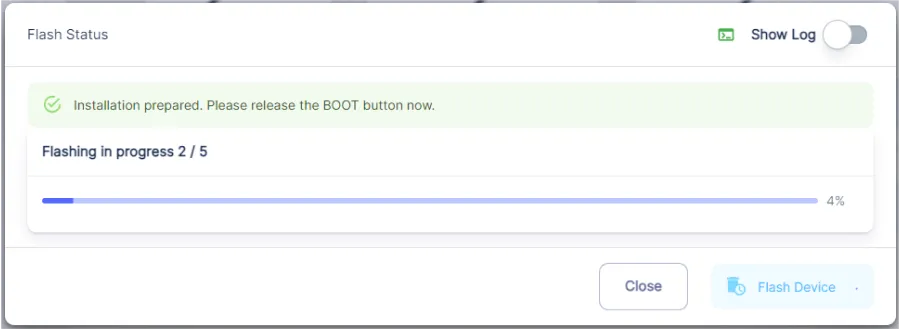

- Hold the BOOT button down until the next window appears on the bottom right side of the screen which says “Installation prepared. Please release the boot button now.”

- Release the BOOT button from your ESP32 when this pop-up on the bottom right window appears.

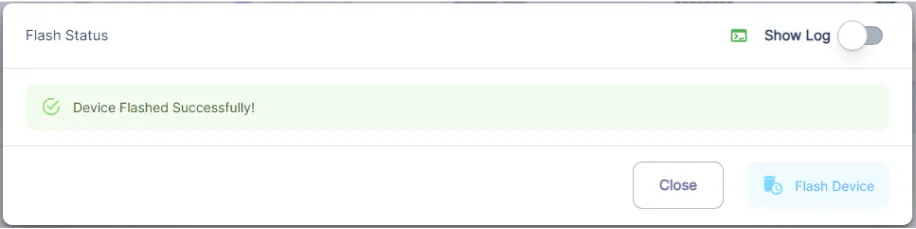

- After some time, a popup will appear saying Device Flashed Successfully! This means that your device has been set up successfully.
5. MiOS Web Dashboard
- After configuring the controller with the EzloPi web flasher, head to ezlogic.mios.com

- Use the same credential to log in that you used for configuring the controller with the web flasher.

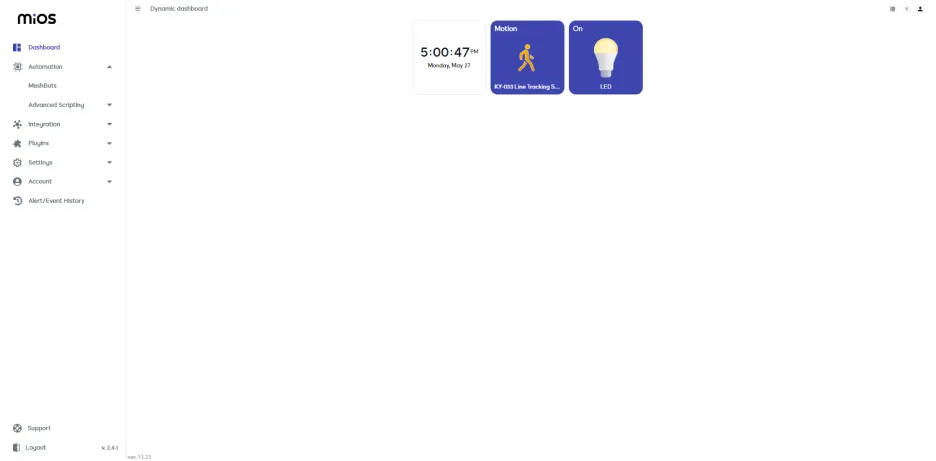

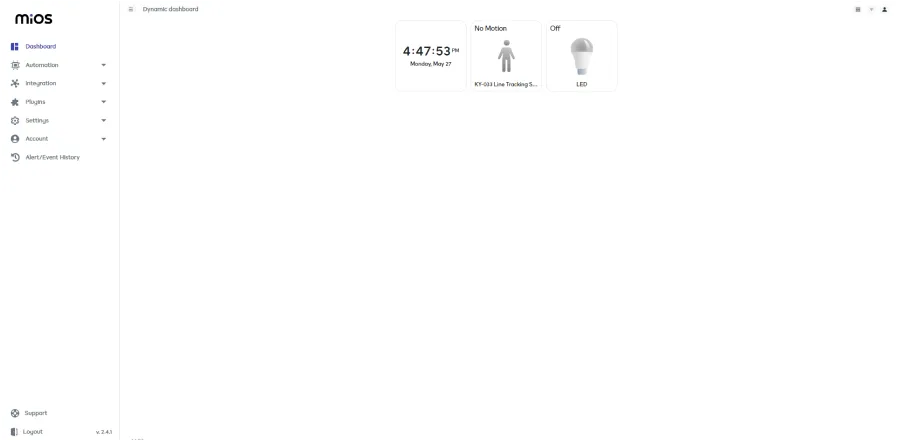

- As you can see in the MiOS web dashboard, we can see the KY-33 sensor tile and LED tile.
MeshBots:

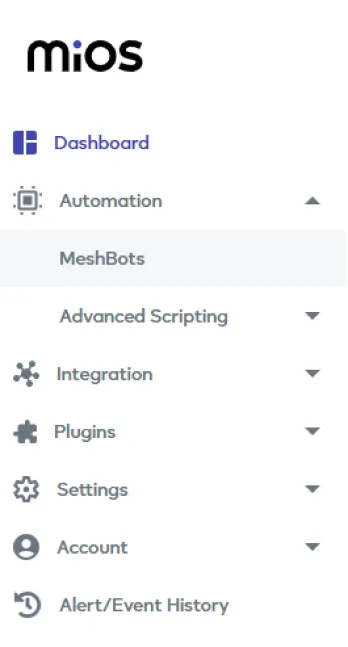

- On the right side of the screen under Automation, click on MeshBots.

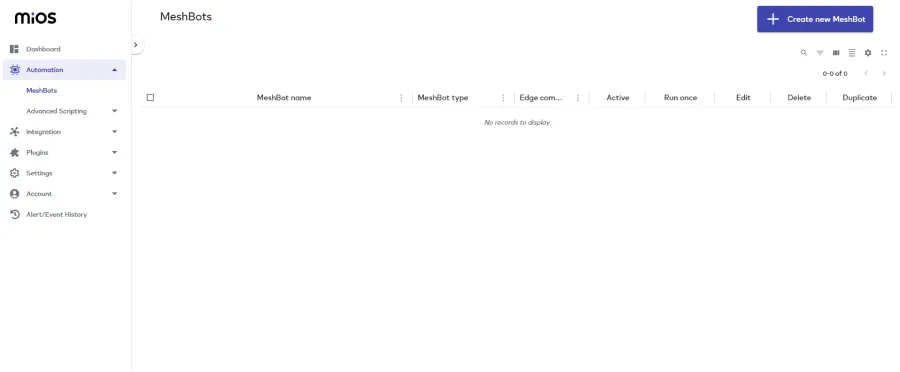

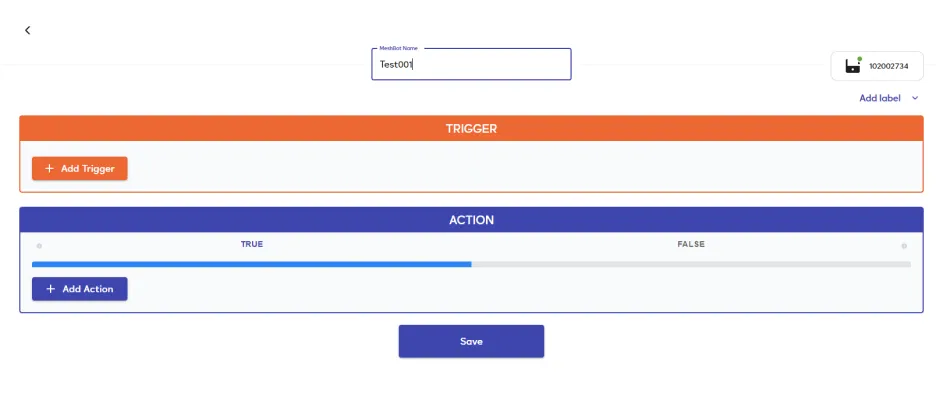

- On meshbot screen, click on Create new MeshBot button present on the top right corner of the screen.

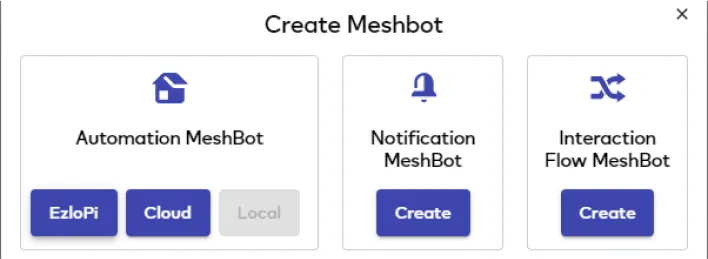

- After clicking on Create new MeshBot you will see new options, click on EzloPi.

- On the next screen you will see that we can create a name of our choosing, in this case we write it as Test001.

- In the trigger tab you can set the TRIGGER for your device and in the ACTION tab you can set the action to be performed based on the trigger which you have created.

- Set these values in TRIGGER section:
- Set Node Type to Device.
- Set the Node to Reed Switch.
- Set the Capability to Dw state.
- Set the value to dw_is_opened.

- Set these values in the True part of the ACTION section.
- Set Node Type to Device.
- Set Controllable Type to LED.
- Set the Capability to Switch.
- Set the value to true.

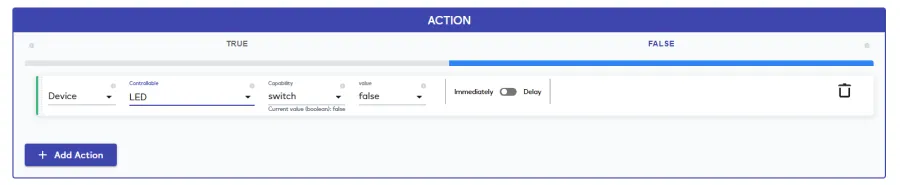

- Set these values in the False part of the ACTION section.
- Set Node Type to Device.
- Set Controllable Type to LED.
- Set the Capability to Switch.
- Set the value to false.

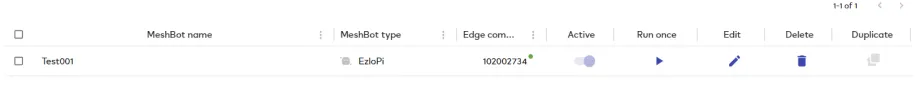

- After clicking the apply button you can see a table of your setting in the Current configuration tab.


-
`
- Here, it can be seen that when the KY-33 sensor tile turns on which indicates that it is detecting darkness, the LED also turns on because of the rules we have set in the meshbot.
6. MiOS App
You can download the MIOS Android app from the Google Play Store and Apple App Store.
- After downloading the app, proceed to install the application and open it.

- Using the MIOS mobile application, create a new Ezlo Cloud account using the sign-up option. If you already have an account, you may proceed to log in.

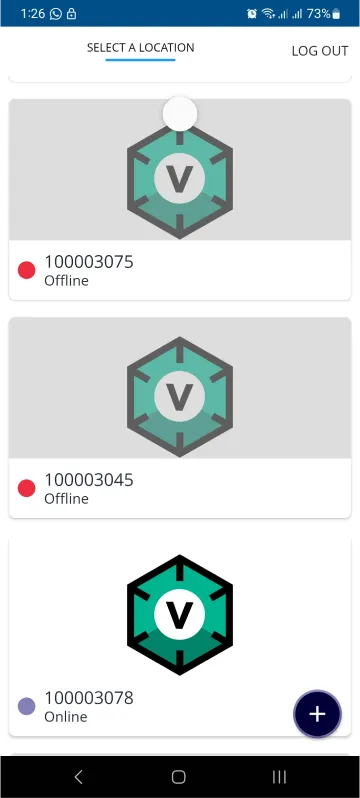

- After successfully logging in, you will be able to see the number of controllers connected such as a lamp, fan, or any other device in the MiOS app. Tap on any controller of your desired ID:

- You will be able to see the status of your controller whether it is online or offline. Access the device dashboard, and tap the device. The following view of the dashboard will appear:

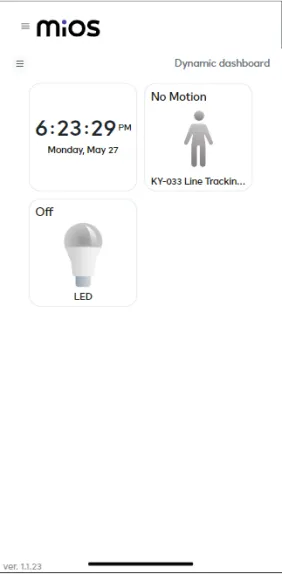

- After opening the dashboard, you will be able to see the tile of your connected device. As you can see in the MiOS mobile app dashboard, we can see the KY-33 sensor tile and LED tile.

- Here, it can be seen that when the KY-33 sensor tile turns on which indicates that it is detecting darkness, the LED also turns on because of the rules we have set in the meshbot.
